A stepper motor is an actuator that converts electrical pulses into angular or linear displacement. When a stepper driver receives a pulse signal, it drives the stepper motor to rotate by a fixed angle in the specified direction. This angle is called the “step angle,” and the motor rotates step by step in fixed angular increments.

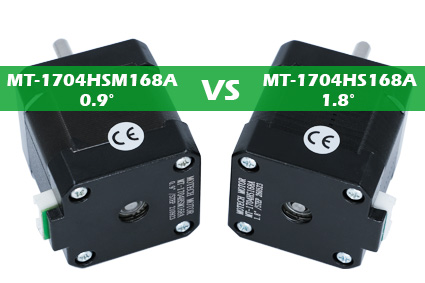

Typically, a stepper motor is provided with a specified step angle value. For example, the MOTECH MOTOR MT-1704HSM168A features a step angle of 0.9°, while the MT-1704HS168A features a step angle of 1.8°. This step angle can be called the "motor's inherent step angle," but in practical applications, the actual step angle does not necessarily equal the inherent step angle. In actual operation, smaller step angle can be achieved through driver microstepping, thereby improving accuracy and reducing vibration and noise.

How to Choose the Right Step Angle?

The choice of step angle depends on the load and accuracy requirements. The minimum resolution  of the load (equivalent value) is converted to the resolution of the motor shaft, determining how many angles (including reduction angles) are needed for each equivalent motor. The motor's step angle should be equal to or less than this angle.

Standard stepper motor step angles on the market include:

·   2-Phase and 4-Phase Motors: 0.9° and 1.8° (Most Common)

·   3-Phase Motors : 1.5° and 3°

·   5-Phase Motors: 0.36° and 0.72°

When selecting the ideal step angle for your motion control system, evaluate these four critical technical and economic factors:

1.   Control Precision Requirements

When the system requires high-precision positioning (such as precision CNC machine tools), a motor with a smaller step angle should be selected. A smaller angle means a finer rotation angle corresponding to each pulse, enabling more precise position adjustments and meeting millimeter-level or even micrometer-level machining requirements.

2.   Load Characteristics

For applications with large load inertia (such as heavy-duty robotic arms in automated production lines), a small step angle motor is recommended. These motors start and run more smoothly, reducing vibration or step loss caused by inertial impact and ensuring stability of the loaded motion.

3.   Operating Speed

For scenarios with high speed requirements (such as high-speed conveying or sorting equipment), a large step angle motor is more suitable. At the same pulse frequency, a large step angle rotates a larger physical angle per unit time, achieving a faster overall speed. However, it should be noted that accuracy may decrease accordingly.

4.   System Cost

      From a cost perspective, small step angle motors are usually more expensive due to their complex design and high-precision materials. If the application does not require high accuracy (such as the coarse positioning in packaging  machinery), choosing a large step angle motor can significantly reduce procurement costs while still meeting the requirements.

Real-World Application Case: 3D Printers

In 3D printing, stepper motors are used to control the movement of the print head and the lifting and lowering of the platform. To achieve accurate model printing, stepper motors need precise control over angle and position.

In the 3D printing industry, builders utilize both 1.8° and 0.9° motors depending on their target market.

·   Our Recommendation for 1.8°: If you are building a budget-conscious or high-speed printer, a 1.8° motor paired with a high-quality microstepping driver offers excellent torque and great value.

·   Our Recommendation for 0.9°: If your goal is ultimate surface finish quality, ultra-high resolution, and near-silent operation, upgrading to a 0.9° motor on the X and Y axes yields a highly noticeable improvement.

Need Samples for Testing?

The best way to evaluate the difference in your specific chassis is through a side-by-side bench test. We highly recommend testing both configurations during your prototyping phase. This helps determine which motor provides the best balance of torque, smoothness, accuracy, and cost.

MOTECH MOTOR offers a wide range of high-performance NEMA 14, NEMA 17, and NEMA 23 hybrid stepper motors, available in different step angles including 0.9°, 1.2°, and 1.8°.

Explore our stepper motor products:

https://www.motechmotor.com/products.aspx?code=01

[CONTACT US] to request samples or discuss a customized stepper motor solution for your project.

-----------------------------------------------------------------------------------------------------------------------

****Stepper Motor Step Angle: Key Takeaways and FAQs****

1. What is the difference between a 1.8° and 0.9° stepper motor?   A 1.8° stepper motor has 200 full steps per revolution, while a 0.9° stepper motor has 400 full steps per revolution. The 0.9° motor provides higher native resolution and smoother motion, while the 1.8° motor is usually more cost-effective and suitable for general applications.

2. Is a 0.9° stepper motor more accurate than a 1.8° stepper motor?   A 0.9° stepper motor provides finer full-step resolution, but final system accuracy also depends on the driver, load, mechanical transmission, rigidity, and control settings.

3. Can microstepping replace a smaller step angle motor?   Microstepping can improve smoothness and control resolution, but it does not completely replace the benefits of a smaller inherent step angle. A 0.9° motor still provides higher native mechanical resolution than a 1.8° motor.

4. Which step angle is better for 3D printers?   For most standard 3D printers, a 1.8° stepper motor is cost-effective and reliable. For high-resolution printers or applications requiring smoother X/Y motion, a 0.9° stepper motor can improve surface finish and reduce vibration.

5. Which stepper motor step angle is best for industrial automation?   For general industrial automation, 1.8° stepper motors are widely used because they offer a good balance of torque, speed, availability, and cost. For precision positioning systems, 0.9° motors may be a better choice.
