Digital Driver
Features
|
High performance, cost-effective |
Automatic idle-current reduction |
|
Supply voltage up to +80 VDC |
16 selectable resolutions in decimal and binary, up to 25,600 steps/rev |
|
Output current up to 6.5A |
|
| Self-adjustment technology |
Suitable for 2-phase and 4-phase motors |
| Pure-sinusoidal current control technology |
Support PUL/DIR and CW/CCW modes |
| Pulse input frequency up to 200 KHz |
Short-voltage, over-voltage, over-current protections |
Specifications
|
Electrical Specifications (Tj = 25 ) |
|
|
Supply voltage |
18～80VD |
|
Output current |
2.8 - 6.5A |
|
Pulse input frequency |
0-200KHZ |
|
Isolation resistance |
＞500MΩ。 |
|
Cooling |
Natural Cooling |
|
Environment |
Avoid dust, oil fog and corrosive gases |
|
Ambient Temperature |
0oC～＋50oC |
|
Humidity |
40%RH - 90%RH |
|
Operating Temperature |
70 oC Max |
|
Vibration |
5.9m/s2 Max |
|
Weight |
Approx. 350g |
Microstep Resolution Selection
|
Steps/rev.(for 1.8°motor) |
SW5 |
SW6 |
SW7 |
SW8 |
| 200 |
ON |
ON |
ON |
ON |
| 400 | OFF | ON | ON |
ON |
| 800 | ON | OFF | ON |
ON |
| 1600 |
OFF |
OFF |
ON |
ON |
| 3200 |
ON |
ON |
OFF |
ON |
| 6400 |
OFF |
ON |
OFF |
ON |
| 12800 |
ON |
OFF |
OFF |
ON |
| 25600 |
OFF |
OFF |
OFF |
ON |
|
1000 |
ON |
ON |
ON |
OFF |
|
2000 |
OFF |
ON |
ON |
OFF |
| 4000 |
ON |
OFF |
ON |
OFF |
| 5000 |
OFF |
OFF |
ON |
OFF |
| 8000 |
ON |
ON |
OFF |
OFF |
| 10000 |
OFF |
ON |
OFF |
OFF |
| 20000 |
ON |
OFF |
OFF |
OFF |
| 25000 |
OFF |
OFF |
OFF |
OFF |

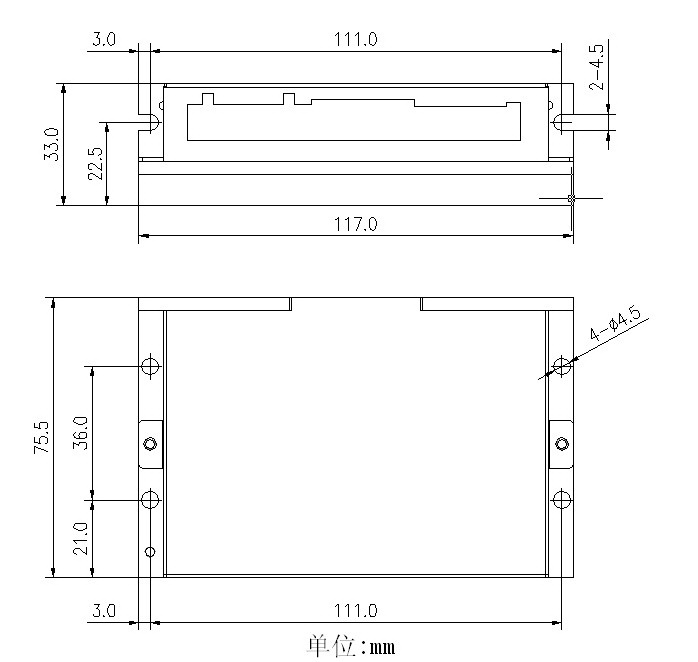

Mechanical Specifications(mm)
